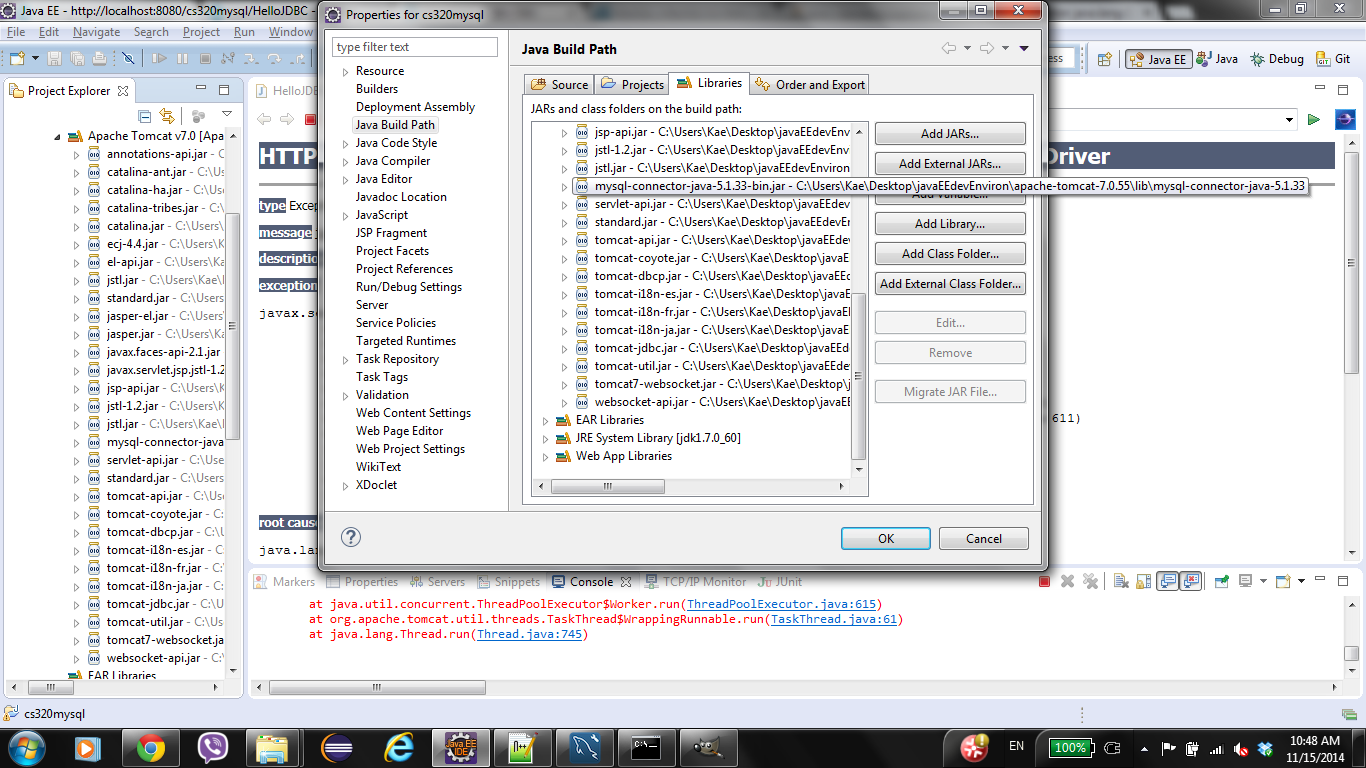

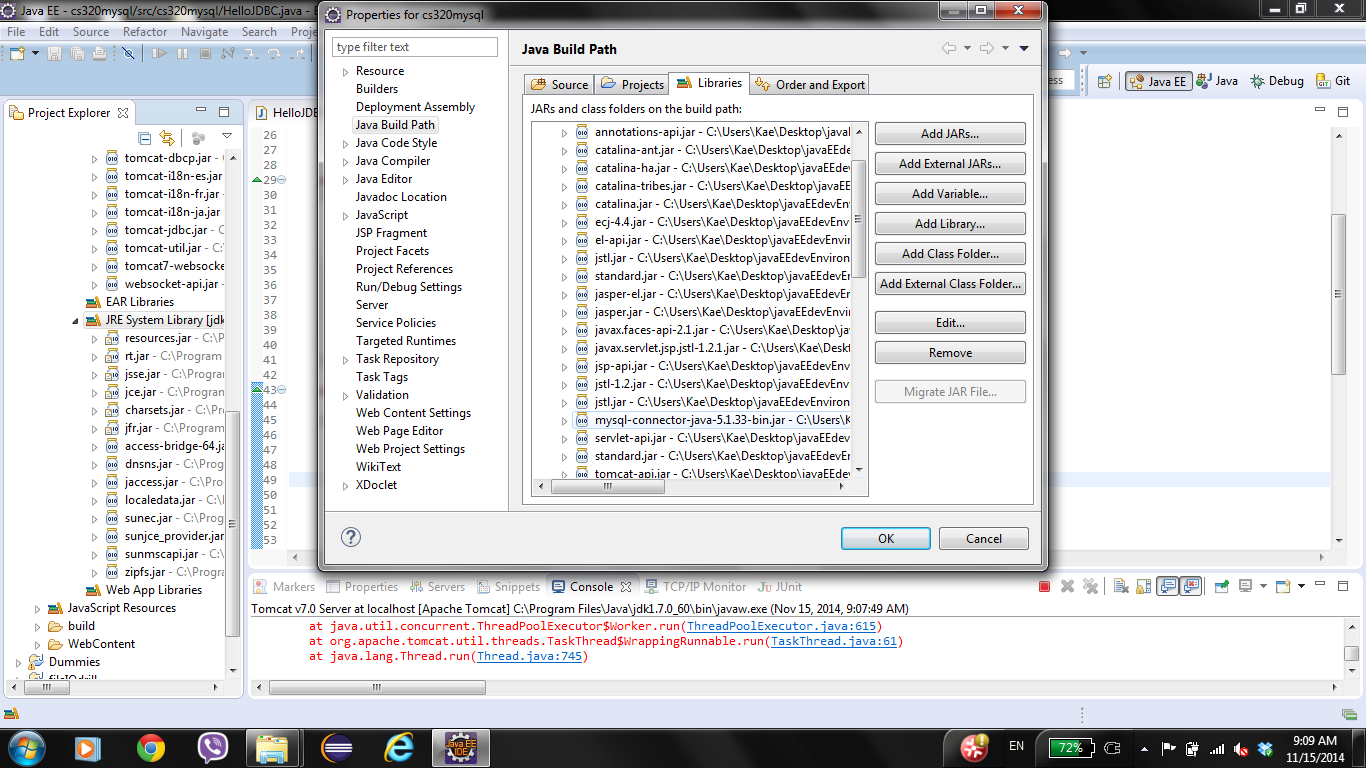

I have mysql-connector-java-5.1.33\mysql-connector-java-5.1.33-bin.jar in apache-tomcat-7.0.55\lib\, and it shows up on my Eclipse Project Explorer under the Dynamic Web Project folder where I have my HelloJDBC.java which is from our course website (Please see the attachment), but when I run the servlet, I get 500 error (I also see the Driver.class under com.mysql.jdbc package under mysql-connector-java-5.1.33-bin.jar):

HTTP Status 500 - java.lang.ClassNotFoundException: com.mysql.jdbc.Driver

type Exception report

message java.lang.ClassNotFoundException: com.mysql.jdbc.Driver

description The server encountered an internal error that prevented it from fulfilling this request.

exception

javax.servlet.ServletException: java.lang.ClassNotFoundException: com.mysql.jdbc.Driver
    cs320mysql.HelloJDBC.init(HelloJDBC.java:39)
    org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:501)
    org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:103)
    org.apache.catalina.valves.AccessLogValve.invoke(AccessLogValve.java:950)
    org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:408)
    org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1070)
    org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:611)
    org.apache.tomcat.util.net.JIoEndpoint$SocketProcessor.run(JIoEndpoint.java:314)
    java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1145)
    java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:615)
    org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
    java.lang.Thread.run(Thread.java:745)

root cause

java.lang.ClassNotFoundException: com.mysql.jdbc.Driver
    org.apache.catalina.loader.WebappClassLoader.loadClass(WebappClassLoader.java:1720)
    org.apache.catalina.loader.WebappClassLoader.loadClass(WebappClassLoader.java:1571)
    java.lang.Class.forName0(Native Method)
    java.lang.Class.forName(Class.java:190)
    cs320mysql.HelloJDBC.init(HelloJDBC.java:35)
    org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:501)
    org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:103)
    org.apache.catalina.valves.AccessLogValve.invoke(AccessLogValve.java:950)
    org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:408)
    org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1070)
    org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:611)
    org.apache.tomcat.util.net.JIoEndpoint$SocketProcessor.run(JIoEndpoint.java:314)
    java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1145)
    java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:615)
    org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
    java.lang.Thread.run(Thread.java:745)

Could anybody please point out what I am doing wrong and some things I could try to fix the problem?
Thank you in advance.

-Kae

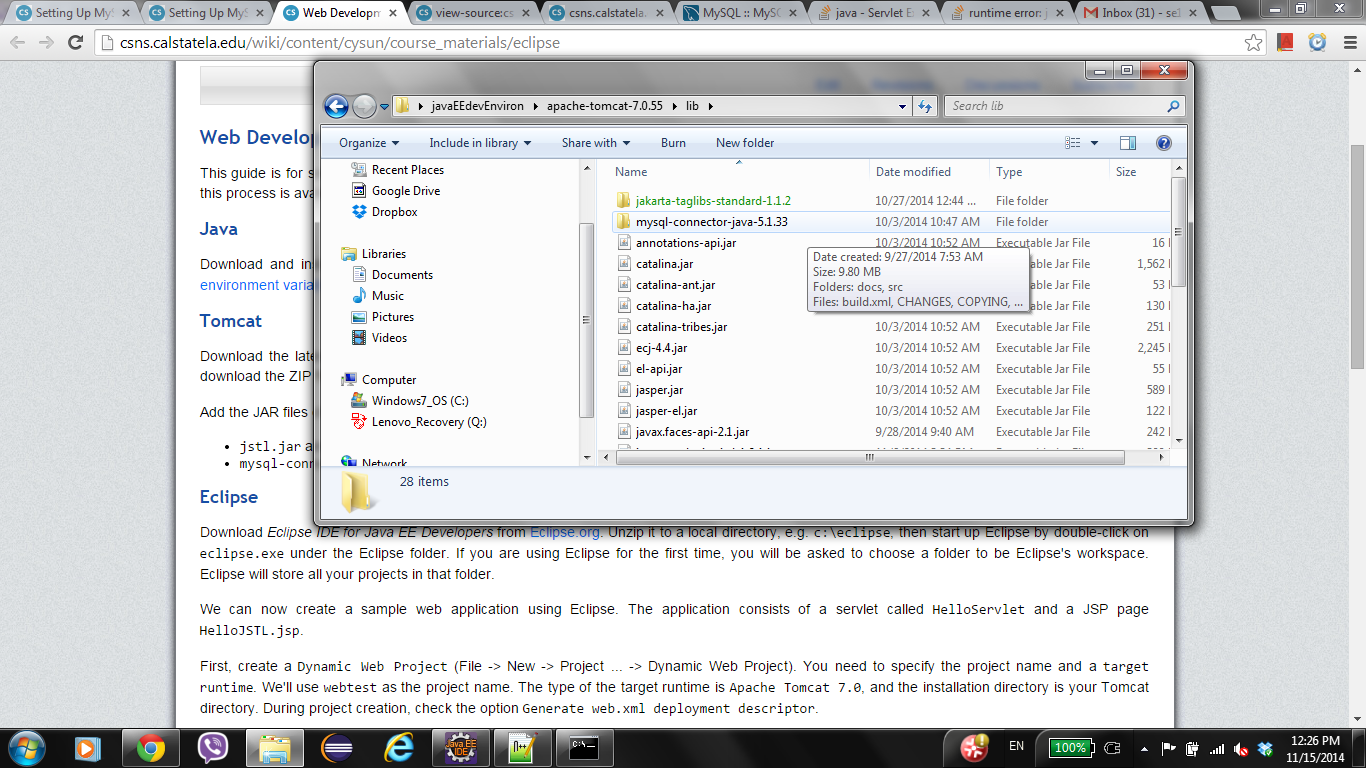

If I understand it correctly, it is situated directly under /lib (Please see the attached).


cysun wrote:

Is the jar file directly under Tomcat's lib folder or is it under a subfolder /mysql-connector-java-5.1.33 under /lib? It needs to be directly under /lib.

Oh, I'm sorry, it WAS under the subdirectly.
Still shows 500 errors, but it no longer complains about not finding the Driver class.

Thank you.
