Redalb
Posts: 22
Posted 13:05 Apr 20, 2011 |

1_20_2 Generated Image

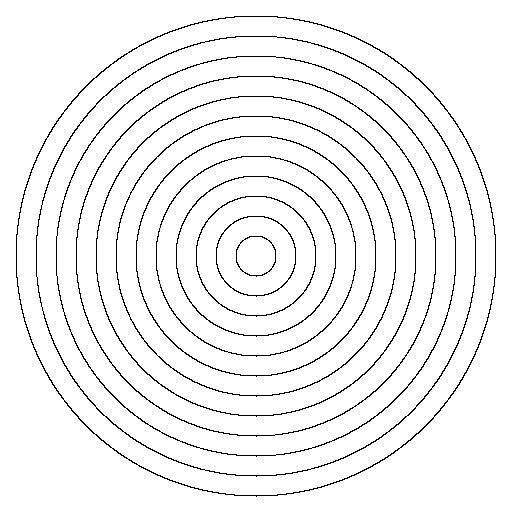

1_20_2 No Filtering

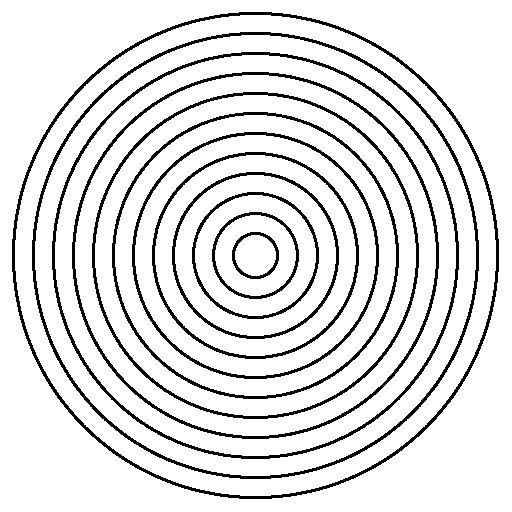

1_20_2 With Average Filter using 3x3 Kernel

Same input as the first image. No filtering, and K = 4

Same input as the first image. With Average Filter using 3x3 Kernel, and with K = 4


Still need to do some tweaking as the filtered circles aren't as nice as I would like them to be.


-Todd

Last edited by Redalb at 14:39 Apr 20, 2011.
ashasabeer
Posts: 55
Posted 13:29 Apr 20, 2011 |

we should use "average filter" rt .that means we should calculate all the 3*3 pixels and  take the average  Is it correct ?

Redalb
Posts: 22
Posted 14:26 Apr 20, 2011 |
ashasabeer wrote:

we should use "average filter" rt .that means we should calculate all the 3*3 pixels and  take the average  Is it correct ?

Correct



1_20_2 Updated filter result

1_20_4 Updated filter result



5_40_4 Created Image

5_40_4 No Filter

5_40_4 Filtered


-Todd

Last edited by Redalb at 14:39 Apr 20, 2011.
cbort
Posts: 95
Posted 21:28 Apr 22, 2011 |

My filtering seems to be doing very little if  its even doing anything at all.. I cant tell the difference to be honest...

To filter I am splitting the image up into non-overlapping 3x3 grids. I am then setting all pixels in the grid to the the average color of that particular grid.


Am I doing this incorrectly? Should the grids overlap? Should I be setting them all black if any in the grid are black?



After filtering do I do anything different from the procedure of the non filtered shrinking

Last edited by cbort at 21:54 Apr 22, 2011.
Redalb
Posts: 22
Posted 01:00 Apr 23, 2011 |

My advice would be to make an averages array the same size as the original image, each value in the averages array is the average value for that spot in the original. If you average pixels in the original as you go along it will mess up the averages. You would end up with averages of pixels that were already averaged.


Also, you want the average color. Not simply black or white. The gray spots you can produce will help make the reduced image lines appear smoother.

Last edited by Redalb at 01:03 Apr 23, 2011.
cbort
Posts: 95
Posted 16:19 Apr 23, 2011 |

Thanks for your help Todd :)

Filtered:

Non-Filtered:

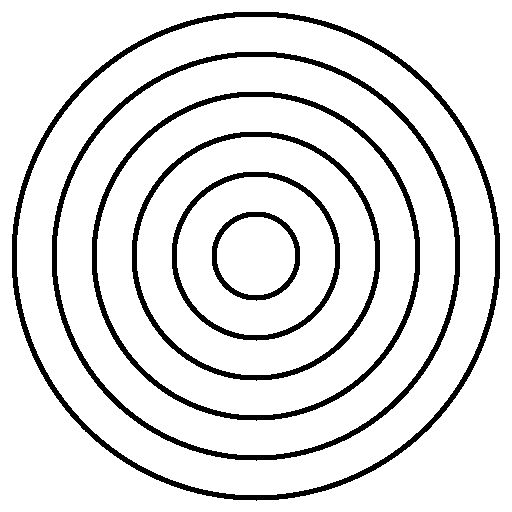

Original:
